Usage

Roles

The lily role

You can use lily role to insert a single LilyPond Music Expression as inline score.

Inline Score
reStructuredText
:lily:`{c'}` is the first note of the C major scale.
Result

\score{{c'}} is the first note of the C major scale.

If the score contains MIDI block, the extension will generate audio file and show a player beside the score:

Playable Inline Score
reStructuredText
:lily:`{c' e' g' } \layout{} \midi{}` is playable.
Result

\score{{c' e' g' } \layout{} \midi{}} is playable.

Added in version 2.1.0.

Hint

Some implementation details to help you debug your music expressions: the music expression will be wrapped by a \score block before passing to Lilypond.

For example, :lily:`{c'}` will be converted to \scores { {c'} }.

Directives

The lily directive

The lily directive is used to insert a complete LilyPond score as block level element.

\version "2.20.0"
\header {
  title = "翼をください, Excerpts"
}

\score {
  <<
    \new Staff \relative c' {
        \time 4/4
        \tempo 4 = 70
        r4 r r c8 d                  e8 e f16 e8 d16 (d4) e8 d
        c8 c d16 c8 b16 (b4) b8 g    a4 c8 a g4 c4
        d4 r r r
  }
  >>

  \layout {}
  \midi {}
}

.. lily::

   \version "2.20.0"
   \header {
     title = "翼をください, Excerpts"
   }

   \score {
     <<
       \new Staff \relative c' {
           \time 4/4
           \tempo 4 = 70
           r4 r r c8 d                  e8 e f16 e8 d16 (d4) e8 d
           c8 c d16 c8 b16 (b4) b8 g    a4 c8 a g4 c4
           d4 r r r
     }
     >>

     \layout {}
     \midi {}
   }

The directive supports the following options:

nocrop:

(flag) Set this option to have scores output to images with appropriate margins and preset size (A4), which is easy for printing. See 🎵 Original paper size.

Changed in version 2.0.0.

noaudio:

(flag) If the score contains MIDI block, Lilypond generates MIDI output files. which are converted to audio files by this extension. Use this option to disable audio, see 🎵 Disable Audio.

Changed in version 2.0.0.

loop:

(flag) Whethre audio player will automatically seek back to the start upon reaching the end of the audio. This conflicts with noaudio. Example: 🎵 Loop.

Added in version 1.2.

transpose:

(text) Transposing the pitches of score from one to another. Pitches are written in LilyPond Notation and separated in whitespace. For example: :transpose: g c, see 🎵 Transposing.

Added in version 2.0.0.

controls:

(text, one of the top or bottom) Specify the position of the control bar relative to the score. This implies audio. See example 🎵 Control Bar at the Top.

Added in version 1.3.

The lilyinclude directive

The lilyinclude directive is similar to The lily directive, except the source of LilyPond are read from file but not contents of directive.

\version "2.20.0"
\header {
  title = "《Witch Spring I》OP"
  composer = "Kiwi Walks"
  arranger = "SilverRainZ"
}

symbols =  {
  \time 4/4
  \tempo  "Allegretto" 4 = 110

  % 1
  c'4 c' c' c'8 b8
  c'4 g' c' c'8 b8
  c'4 g' (ais') c''8 b'8
  c''2 r2

  %14
  e'4 g c'2
  a8 c'8 c'8 d'8 c'2

  e'4 g' c'2
  c'4 d'8 e'8 c'4 g

  e'4 g c'2
  a8 c'8 c'8 d'8 e'4 c'

  g4 f e f8 g8

  \bar "|."
}

\score {
  <<
    \new Staff \with {midiInstrument = "acoustic guitar (nylon)"} {
      \clef "G_8"
      \symbols
    }
    \new TabStaff {
      \tabFullNotation
      \symbols
    }
  >>

  \midi { }
  \layout { }
}

.. lilyinclude:: /_scores/witch-spring.ly

Options of the directive are same to The lily directive.

See also

You and download the example LilyPond documentation from here: /_scores/witch-spring.ly.

The jianpu directive

Added in version 1.6.

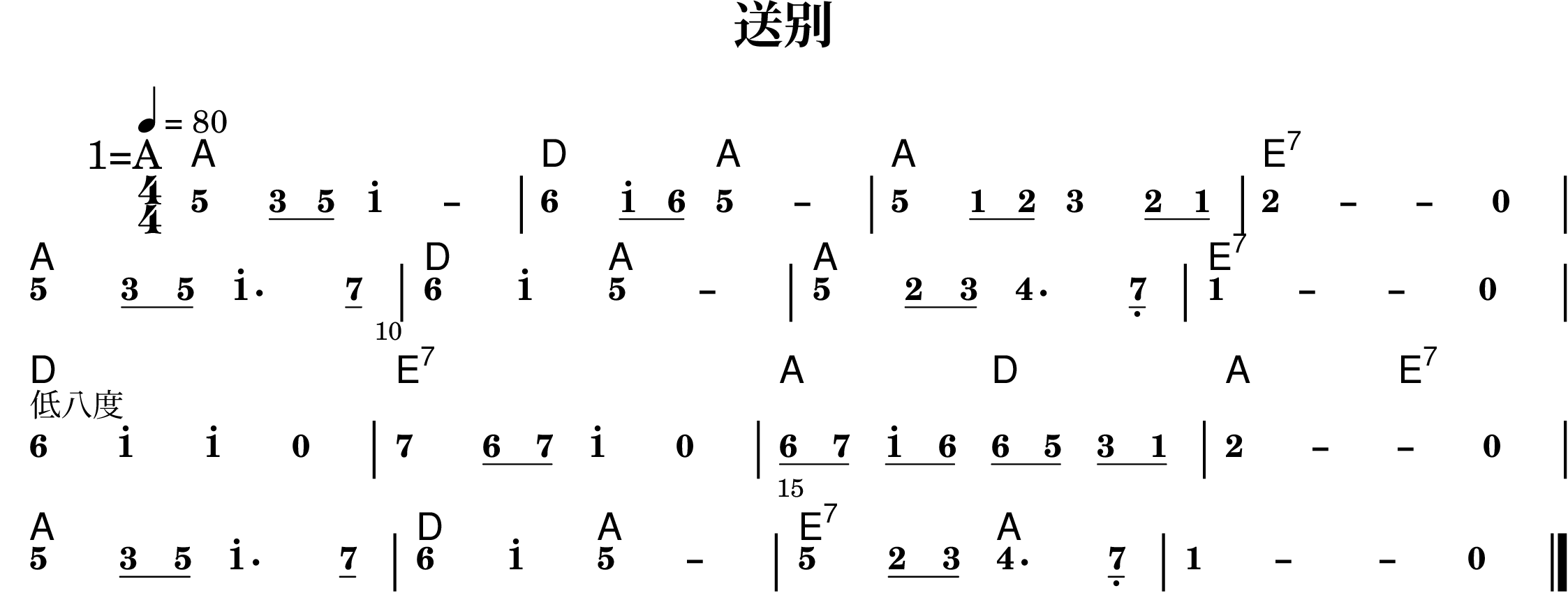

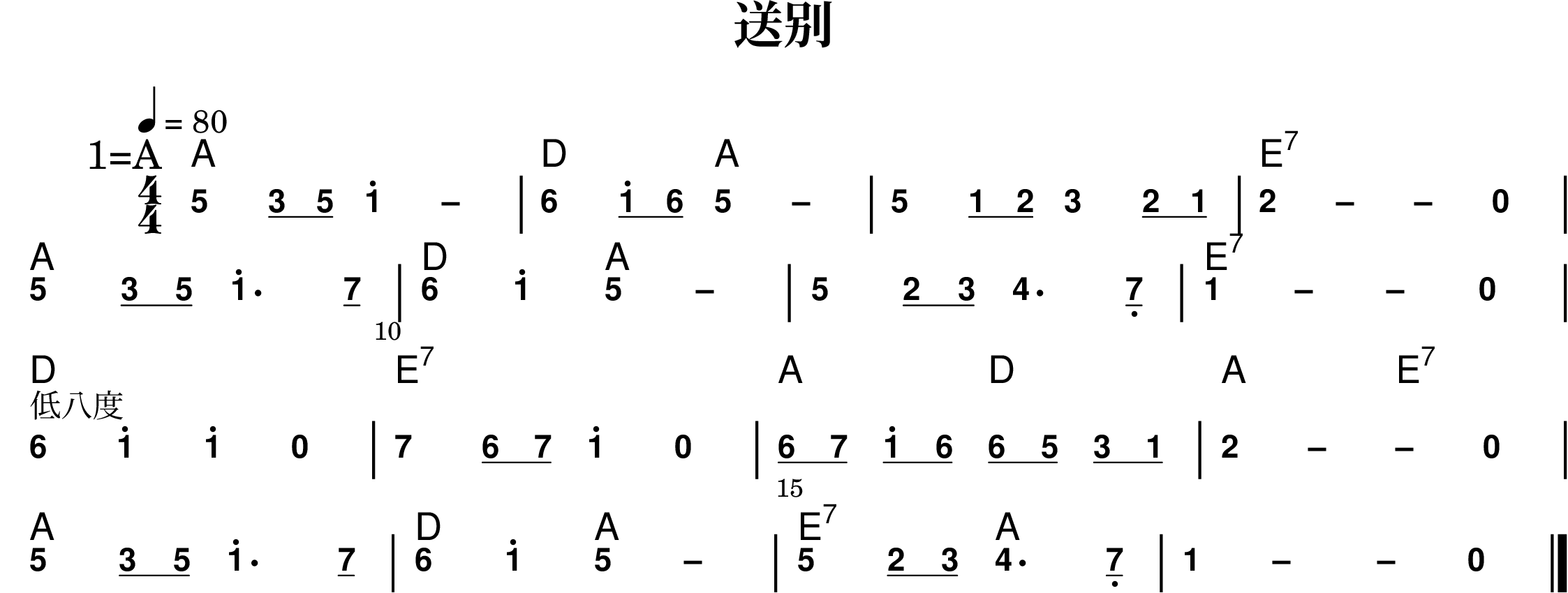

The jianpu directive is used to insert a Jianpu (Numbered Musical Notation, 简谱) score as block level element.

Hint

The syntax of Jianpu is defined by Silas S. Brown and we use his jianpu-ly script to convert Jianpu source code to Lilypond source code, and finally engraving a music score.

\version "2.20.0"
#(set-global-staff-size 20)

% un-comment the next line to remove Lilypond tagline:
% \header { tagline="" }

% comment out the next line if you're debugging jianpu-ly
% (but best leave it un-commented in production, since
% the point-and-click locations won't go to the user input)
\pointAndClickOff

\paper {
  print-all-headers = ##t %% allow per-score headers

  % un-comment the next line for A5:
  % #(set-default-paper-size "a5" )

  % un-comment the next line for no page numbers:
  % print-page-number = ##f

  % un-comment the next 3 lines for a binding edge:
  % two-sided = ##t
  % inner-margin = 20\mm
  % outer-margin = 10\mm

  % un-comment the next line for a more space-saving header layout:
  % scoreTitleMarkup = \markup { \center-column { \fill-line { \magnify #1.5 { \bold { \fromproperty #'header:dedication } } \magnify #1.5 { \bold { \fromproperty #'header:title } } \fromproperty #'header:composer } \fill-line { \fromproperty #'header:instrument \fromproperty #'header:subtitle \smaller{\fromproperty #'header:subsubtitle } } } }
}

%% 2-dot and 3-dot articulations
#(append! default-script-alist
   (list
    `(two-dots
       . (
           (stencil . ,ly:text-interface::print)
           (text . ,#{ \markup \override #'(font-encoding . latin1) \center-align \bold ":" #})
           (padding . 0.20)
           (avoid-slur . inside)
           (direction . ,UP)))))
#(append! default-script-alist
   (list
    `(three-dots
       . (
           (stencil . ,ly:text-interface::print)
           (text . ,#{ \markup \override #'(font-encoding . latin1) \center-align \bold "⋮" #})
           (padding . 0.30)
           (avoid-slur . inside)
           (direction . ,UP)))))
"two-dots" =
#(make-articulation 'two-dots)

"three-dots" =
#(make-articulation 'three-dots)

\layout {
  \context {
    \Score
    scriptDefinitions = #default-script-alist
  }
}

note-mod =
#(define-music-function
     (text note)
     (markup? ly:music?)
   #{
     \tweak NoteHead.stencil #ly:text-interface::print
     \tweak NoteHead.text
        \markup \lower #0.5 \sans \bold #text
     \tweak Rest.stencil #ly:text-interface::print
     \tweak Rest.text
        \markup \lower #0.5 \sans \bold #text
     #note
   #})
#(define (flip-beams grob)
   (ly:grob-set-property!
    grob 'stencil
    (ly:stencil-translate
     (let* ((stl (ly:grob-property grob 'stencil))
            (centered-stl (ly:stencil-aligned-to stl Y DOWN)))
       (ly:stencil-translate-axis
        (ly:stencil-scale centered-stl 1 -1)
        (* (- (car (ly:stencil-extent stl Y)) (car (ly:stencil-extent centered-stl Y))) 0) Y))
     (cons 0 -0.8))))

%=======================================================
#(define-event-class 'jianpu-grace-curve-event 'span-event)

#(define (add-grob-definition grob-name grob-entry)
   (set! all-grob-descriptions
         (cons ((@@ (lily) completize-grob-entry)
                (cons grob-name grob-entry))
               all-grob-descriptions)))

#(define (jianpu-grace-curve-stencil grob)
   (let* ((elts (ly:grob-object grob 'elements))
          (refp-X (ly:grob-common-refpoint-of-array grob elts X))
          (X-ext (ly:relative-group-extent elts refp-X X))
          (refp-Y (ly:grob-common-refpoint-of-array grob elts Y))
          (Y-ext (ly:relative-group-extent elts refp-Y Y))
          (direction (ly:grob-property grob 'direction RIGHT))
          (x-start (* 0.5 (+ (car X-ext) (cdr X-ext))))
          (y-start (+ (car Y-ext) 0.32))
          (x-start2 (if (eq? direction RIGHT)(+ x-start 0.5)(- x-start 0.5)))
          (x-end (if (eq? direction RIGHT)(+ (cdr X-ext) 0.2)(- (car X-ext) 0.2)))
          (y-end (- y-start 0.5))
          (stil (ly:make-stencil `(path 0.1
                                        (moveto ,x-start ,y-start
                                         curveto ,x-start ,y-end ,x-start ,y-end ,x-start2 ,y-end
                                         lineto ,x-end ,y-end))
                                  X-ext
                                  Y-ext))
          (offset (ly:grob-relative-coordinate grob refp-X X)))
     (ly:stencil-translate-axis stil (- offset) X)))

#(add-grob-definition
  'JianpuGraceCurve
  `(
     (stencil . ,jianpu-grace-curve-stencil)
     (meta . ((class . Spanner)
              (interfaces . ())))))

#(define jianpu-grace-curve-types
   '(
      (JianpuGraceCurveEvent
       . ((description . "Used to signal where curve encompassing music start and stop.")
          (types . (general-music jianpu-grace-curve-event span-event event))
          ))
      ))

#(set!
  jianpu-grace-curve-types
  (map (lambda (x)
         (set-object-property! (car x)
           'music-description
           (cdr (assq 'description (cdr x))))
         (let ((lst (cdr x)))
           (set! lst (assoc-set! lst 'name (car x)))
           (set! lst (assq-remove! lst 'description))
           (hashq-set! music-name-to-property-table (car x) lst)
           (cons (car x) lst)))
    jianpu-grace-curve-types))

#(set! music-descriptions
       (append jianpu-grace-curve-types music-descriptions))

#(set! music-descriptions
       (sort music-descriptions alist<?))


#(define (add-bound-item spanner item)
   (if (null? (ly:spanner-bound spanner LEFT))
       (ly:spanner-set-bound! spanner LEFT item)
       (ly:spanner-set-bound! spanner RIGHT item)))

jianpuGraceCurveEngraver =
#(lambda (context)
   (let ((span '())
         (finished '())
         (current-event '())
         (event-start '())
         (event-stop '()))
     `(
       (listeners
        (jianpu-grace-curve-event .
          ,(lambda (engraver event)
             (if (= START (ly:event-property event 'span-direction))
                 (set! event-start event)
                 (set! event-stop event)))))

       (acknowledgers
        (note-column-interface .
          ,(lambda (engraver grob source-engraver)
             (if (ly:spanner? span)
                 (begin
                  (ly:pointer-group-interface::add-grob span 'elements grob)
                  (add-bound-item span grob)))
             (if (ly:spanner? finished)
                 (begin
                  (ly:pointer-group-interface::add-grob finished 'elements grob)
                  (add-bound-item finished grob)))))
        (inline-accidental-interface .
          ,(lambda (engraver grob source-engraver)
             (if (ly:spanner? span)
                 (begin
                  (ly:pointer-group-interface::add-grob span 'elements grob)))
             (if (ly:spanner? finished)
                 (ly:pointer-group-interface::add-grob finished 'elements grob))))
        (script-interface .
          ,(lambda (engraver grob source-engraver)
             (if (ly:spanner? span)
                 (begin
                  (ly:pointer-group-interface::add-grob span 'elements grob)))
             (if (ly:spanner? finished)
                 (ly:pointer-group-interface::add-grob finished 'elements grob)))))

       (process-music .
         ,(lambda (trans)
            (if (ly:stream-event? event-stop)
                (if (null? span)
                    (ly:warning "No start to this curve.")
                    (begin
                     (set! finished span)
                     (ly:engraver-announce-end-grob trans finished event-start)
                     (set! span '())
                     (set! event-stop '()))))
            (if (ly:stream-event? event-start)
                (begin
                 (set! span (ly:engraver-make-grob trans 'JianpuGraceCurve event-start))
                 (set! event-start '())))))

       (stop-translation-timestep .
         ,(lambda (trans)
            (if (and (ly:spanner? span)
                     (null? (ly:spanner-bound span LEFT)))
                (ly:spanner-set-bound! span LEFT
                  (ly:context-property context 'currentMusicalColumn)))
            (if (ly:spanner? finished)
                (begin
                 (if (null? (ly:spanner-bound finished RIGHT))
                     (ly:spanner-set-bound! finished RIGHT
                       (ly:context-property context 'currentMusicalColumn)))
                 (set! finished '())
                 (set! event-start '())
                 (set! event-stop '())))))

       (finalize
        (lambda (trans)
          (if (ly:spanner? finished)
              (begin
               (if (null? (ly:spanner-bound finished RIGHT))
                   (set! (ly:spanner-bound finished RIGHT)
                         (ly:context-property context 'currentMusicalColumn)))
               (set! finished '())))))
       )))

jianpuGraceCurveStart =
#(make-span-event 'JianpuGraceCurveEvent START)

jianpuGraceCurveEnd =
#(make-span-event 'JianpuGraceCurveEvent STOP)
%===========================================================

%{ The jianpu-ly input was:

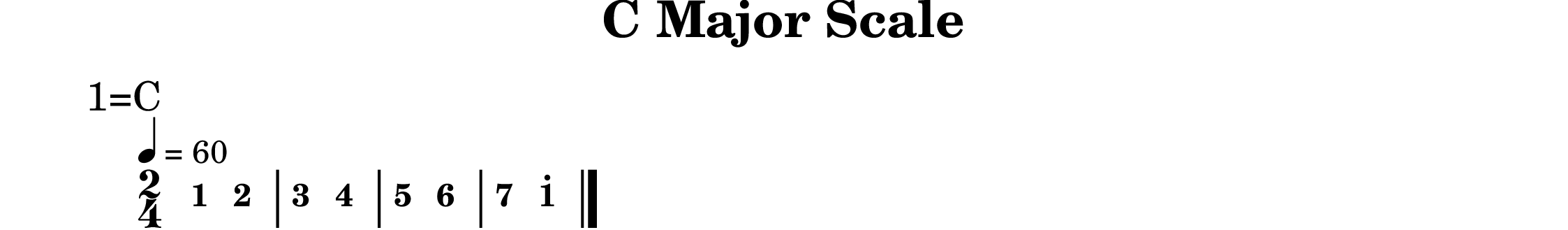

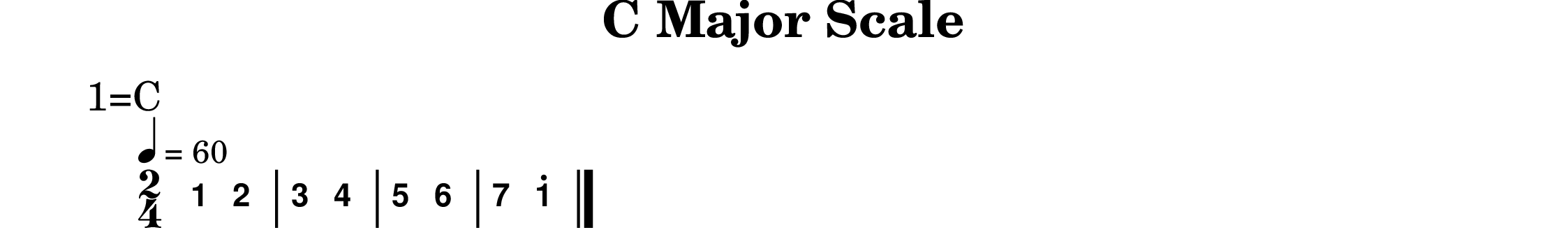

title=C Major Scale
1=C
2/4
4=60

1 2 3 4 5 6 7 1'
%}


\score {
<< \override Score.BarNumber.break-visibility = #center-visible
\override Score.BarNumber.Y-offset = -1
\set Score.barNumberVisibility = #(every-nth-bar-number-visible 5)

%% === BEGIN JIANPU STAFF ===
    \new RhythmicStaff \with {
    \consists "Accidental_engraver"
    \consists \jianpuGraceCurveEngraver
    % Get rid of the stave but not the barlines:
    \override StaffSymbol.line-count = #0 % tested in 2.15.40, 2.16.2, 2.18.0, 2.18.2, 2.20.0 and 2.22.2
    \override BarLine.bar-extent = #'(-2 . 2) % LilyPond 2.18: please make barlines as high as the time signature even though we're on a RhythmicStaff (2.16 and 2.15 don't need this although its presence doesn't hurt; Issue 3685 seems to indicate they'll fix it post-2.18)
    $(add-grace-property 'Voice 'Stem 'direction DOWN)
    $(add-grace-property 'Voice 'Slur 'direction UP)
    $(add-grace-property 'Voice 'Stem 'length-fraction 0.5)
    $(add-grace-property 'Voice 'Beam 'beam-thickness 0.1)
    $(add-grace-property 'Voice 'Beam 'length-fraction 0.3)
    $(add-grace-property 'Voice 'Beam 'after-line-breaking flip-beams)
    $(add-grace-property 'Voice 'Beam 'Y-offset 2.5)
    $(add-grace-property 'Voice 'NoteHead 'Y-offset 2.5)
    }
    { \new Voice="W" {
    \override Beam.transparent = ##f
    \override Stem.direction = #DOWN
    \override Tie.staff-position = #2.5
    \tupletUp
    \tieUp
    \override Stem.length-fraction = #0
    \override Beam.beam-thickness = #0.1
    \override Beam.length-fraction = #0.5
    \override Beam.after-line-breaking = #flip-beams
    \override Voice.Rest.style = #'neomensural % this size tends to line up better (we'll override the appearance anyway)
    \override Accidental.font-size = #-4
    \override TupletBracket.bracket-visibility = ##t

    \override Staff.TimeSignature.style = #'numbered
    \override Staff.Stem.transparent = ##t
     \mark \markup{1=C} \time 2/4 \tempo 4=60  \note-mod "1" c4  \note-mod "2" d4 | %{ bar 2: %}
 \note-mod "3" e4
 \note-mod "4" f4 | %{ bar 3: %}
 \note-mod "5" g4
 \note-mod "6" a4 | %{ bar 4: %}
 \note-mod "7" b4
 \note-mod "1" c4^. \bar "|." } }
% === END JIANPU STAFF ===

>>
\header{
title="C Major Scale"
}
\layout{
  \context {
    \Global
    \grobdescriptions #all-grob-descriptions
  }
} }
\score {
\unfoldRepeats
<<

% === BEGIN MIDI STAFF ===
    \new Staff { \new Voice="X" { \transpose c c { \key c \major  \time 2/4 \tempo 4=60 c'4 d'4 | %{ bar 2: %} e'4 f'4 | %{ bar 3: %} g'4 a'4 | %{ bar 4: %} b'4 c''4 } } }
% === END MIDI STAFF ===

>>
\header{
title="C Major Scale"
}
\midi { \context { \Score tempoWholesPerMinute = #(ly:make-moment 84 4)}} }

.. jianpu::

   title=C Major Scale
   1=C
   2/4
   4=60

   1 2 3 4 5 6 7 1'

Options of the directive are same to The lily directive.

The jianpuinclude directive

Added in version 1.6.

The jianpuinclude directive is similar to The jianpu directive, except the source of Jianpu are read from file but not contents of directive.

\version "2.20.0"
#(set-global-staff-size 20)

% un-comment the next line to remove Lilypond tagline:
% \header { tagline="" }

% comment out the next line if you're debugging jianpu-ly
% (but best leave it un-commented in production, since
% the point-and-click locations won't go to the user input)
\pointAndClickOff

\paper {
  print-all-headers = ##t %% allow per-score headers

  % un-comment the next line for A5:
  % #(set-default-paper-size "a5" )

  % un-comment the next line for no page numbers:
  % print-page-number = ##f

  % un-comment the next 3 lines for a binding edge:
  % two-sided = ##t
  % inner-margin = 20\mm
  % outer-margin = 10\mm

  % un-comment the next line for a more space-saving header layout:
  % scoreTitleMarkup = \markup { \center-column { \fill-line { \magnify #1.5 { \bold { \fromproperty #'header:dedication } } \magnify #1.5 { \bold { \fromproperty #'header:title } } \fromproperty #'header:composer } \fill-line { \fromproperty #'header:instrument \fromproperty #'header:subtitle \smaller{\fromproperty #'header:subsubtitle } } } }
}

%% 2-dot and 3-dot articulations
#(append! default-script-alist
   (list
    `(two-dots
       . (
           (stencil . ,ly:text-interface::print)
           (text . ,#{ \markup \override #'(font-encoding . latin1) \center-align \bold ":" #})
           (padding . 0.20)
           (avoid-slur . inside)
           (direction . ,UP)))))
#(append! default-script-alist
   (list
    `(three-dots
       . (
           (stencil . ,ly:text-interface::print)
           (text . ,#{ \markup \override #'(font-encoding . latin1) \center-align \bold "⋮" #})
           (padding . 0.30)
           (avoid-slur . inside)
           (direction . ,UP)))))
"two-dots" =
#(make-articulation 'two-dots)

"three-dots" =
#(make-articulation 'three-dots)

\layout {
  \context {
    \Score
    scriptDefinitions = #default-script-alist
  }
}

note-mod =
#(define-music-function
     (text note)
     (markup? ly:music?)
   #{
     \tweak NoteHead.stencil #ly:text-interface::print
     \tweak NoteHead.text
        \markup \lower #0.5 \sans \bold #text
     \tweak Rest.stencil #ly:text-interface::print
     \tweak Rest.text
        \markup \lower #0.5 \sans \bold #text
     #note
   #})
#(define (flip-beams grob)
   (ly:grob-set-property!
    grob 'stencil
    (ly:stencil-translate
     (let* ((stl (ly:grob-property grob 'stencil))
            (centered-stl (ly:stencil-aligned-to stl Y DOWN)))
       (ly:stencil-translate-axis
        (ly:stencil-scale centered-stl 1 -1)
        (* (- (car (ly:stencil-extent stl Y)) (car (ly:stencil-extent centered-stl Y))) 0) Y))
     (cons 0 -0.8))))

%=======================================================
#(define-event-class 'jianpu-grace-curve-event 'span-event)

#(define (add-grob-definition grob-name grob-entry)
   (set! all-grob-descriptions
         (cons ((@@ (lily) completize-grob-entry)
                (cons grob-name grob-entry))
               all-grob-descriptions)))

#(define (jianpu-grace-curve-stencil grob)
   (let* ((elts (ly:grob-object grob 'elements))
          (refp-X (ly:grob-common-refpoint-of-array grob elts X))
          (X-ext (ly:relative-group-extent elts refp-X X))
          (refp-Y (ly:grob-common-refpoint-of-array grob elts Y))
          (Y-ext (ly:relative-group-extent elts refp-Y Y))
          (direction (ly:grob-property grob 'direction RIGHT))
          (x-start (* 0.5 (+ (car X-ext) (cdr X-ext))))
          (y-start (+ (car Y-ext) 0.32))
          (x-start2 (if (eq? direction RIGHT)(+ x-start 0.5)(- x-start 0.5)))
          (x-end (if (eq? direction RIGHT)(+ (cdr X-ext) 0.2)(- (car X-ext) 0.2)))
          (y-end (- y-start 0.5))
          (stil (ly:make-stencil `(path 0.1
                                        (moveto ,x-start ,y-start
                                         curveto ,x-start ,y-end ,x-start ,y-end ,x-start2 ,y-end
                                         lineto ,x-end ,y-end))
                                  X-ext
                                  Y-ext))
          (offset (ly:grob-relative-coordinate grob refp-X X)))
     (ly:stencil-translate-axis stil (- offset) X)))

#(add-grob-definition
  'JianpuGraceCurve
  `(
     (stencil . ,jianpu-grace-curve-stencil)
     (meta . ((class . Spanner)
              (interfaces . ())))))

#(define jianpu-grace-curve-types
   '(
      (JianpuGraceCurveEvent
       . ((description . "Used to signal where curve encompassing music start and stop.")
          (types . (general-music jianpu-grace-curve-event span-event event))
          ))
      ))

#(set!
  jianpu-grace-curve-types
  (map (lambda (x)
         (set-object-property! (car x)
           'music-description
           (cdr (assq 'description (cdr x))))
         (let ((lst (cdr x)))
           (set! lst (assoc-set! lst 'name (car x)))
           (set! lst (assq-remove! lst 'description))
           (hashq-set! music-name-to-property-table (car x) lst)
           (cons (car x) lst)))
    jianpu-grace-curve-types))

#(set! music-descriptions
       (append jianpu-grace-curve-types music-descriptions))

#(set! music-descriptions
       (sort music-descriptions alist<?))


#(define (add-bound-item spanner item)
   (if (null? (ly:spanner-bound spanner LEFT))
       (ly:spanner-set-bound! spanner LEFT item)
       (ly:spanner-set-bound! spanner RIGHT item)))

jianpuGraceCurveEngraver =
#(lambda (context)
   (let ((span '())
         (finished '())
         (current-event '())
         (event-start '())
         (event-stop '()))
     `(
       (listeners
        (jianpu-grace-curve-event .
          ,(lambda (engraver event)
             (if (= START (ly:event-property event 'span-direction))
                 (set! event-start event)
                 (set! event-stop event)))))

       (acknowledgers
        (note-column-interface .
          ,(lambda (engraver grob source-engraver)
             (if (ly:spanner? span)
                 (begin
                  (ly:pointer-group-interface::add-grob span 'elements grob)
                  (add-bound-item span grob)))
             (if (ly:spanner? finished)
                 (begin
                  (ly:pointer-group-interface::add-grob finished 'elements grob)
                  (add-bound-item finished grob)))))
        (inline-accidental-interface .
          ,(lambda (engraver grob source-engraver)
             (if (ly:spanner? span)
                 (begin
                  (ly:pointer-group-interface::add-grob span 'elements grob)))
             (if (ly:spanner? finished)
                 (ly:pointer-group-interface::add-grob finished 'elements grob))))
        (script-interface .
          ,(lambda (engraver grob source-engraver)
             (if (ly:spanner? span)
                 (begin
                  (ly:pointer-group-interface::add-grob span 'elements grob)))
             (if (ly:spanner? finished)
                 (ly:pointer-group-interface::add-grob finished 'elements grob)))))

       (process-music .
         ,(lambda (trans)
            (if (ly:stream-event? event-stop)
                (if (null? span)
                    (ly:warning "No start to this curve.")
                    (begin
                     (set! finished span)
                     (ly:engraver-announce-end-grob trans finished event-start)
                     (set! span '())
                     (set! event-stop '()))))
            (if (ly:stream-event? event-start)
                (begin
                 (set! span (ly:engraver-make-grob trans 'JianpuGraceCurve event-start))
                 (set! event-start '())))))

       (stop-translation-timestep .
         ,(lambda (trans)
            (if (and (ly:spanner? span)
                     (null? (ly:spanner-bound span LEFT)))
                (ly:spanner-set-bound! span LEFT
                  (ly:context-property context 'currentMusicalColumn)))
            (if (ly:spanner? finished)
                (begin
                 (if (null? (ly:spanner-bound finished RIGHT))
                     (ly:spanner-set-bound! finished RIGHT
                       (ly:context-property context 'currentMusicalColumn)))
                 (set! finished '())
                 (set! event-start '())
                 (set! event-stop '())))))

       (finalize
        (lambda (trans)
          (if (ly:spanner? finished)
              (begin
               (if (null? (ly:spanner-bound finished RIGHT))
                   (set! (ly:spanner-bound finished RIGHT)
                         (ly:context-property context 'currentMusicalColumn)))
               (set! finished '())))))
       )))

jianpuGraceCurveStart =
#(make-span-event 'JianpuGraceCurveEvent START)

jianpuGraceCurveEnd =
#(make-span-event 'JianpuGraceCurveEvent STOP)
%===========================================================

%{ The jianpu-ly input was:
% http://ssb22.user.srcf.net/mwrhome/jianpu-ly.html

title=送别
4=80
1=A
4/4

chords= a1 d2 a2 a1 e:7 a1 d2 a2 a1 e:7 d1 e:7 a2 d2 a2 e:7 a1 d2 a2 e:7 a1

5 q3 q5 1' -
6  q1' q6 5 -
5 q1 q2 3 q2 q1
2  - - 0
\break

5 q3 q5 1'. q7
6 1' 5 -
5 q2 q3 4. q7,
1 - - 0
\break

6 ^"低八度" 1' 1' 0
7 q6 q7 1' 0
q6 q7 q1' q6 q6 q5 q3 q1
2 - - 0
\break

5 q3 q5 1'. q7
6 1' 5 -
5 q2 q3 4. q7,
1 - - 0
%}


\score {
<< \override Score.BarNumber.break-visibility = #center-visible
\override Score.BarNumber.Y-offset = -1
\set Score.barNumberVisibility = #(every-nth-bar-number-visible 5)
\new ChordNames { \set chordChanges = ##t \chordmode { a1 d2 a2 a1 e:7 a1 d2 a2 a1 e:7 d1 e:7 a2 d2 a2 e:7 a1 d2 a2 e:7 a1 } }

%% === BEGIN JIANPU STAFF ===
    \new RhythmicStaff \with {
    \consists "Accidental_engraver"
    \consists \jianpuGraceCurveEngraver
    % Get rid of the stave but not the barlines:
    \override StaffSymbol.line-count = #0 % tested in 2.15.40, 2.16.2, 2.18.0, 2.18.2, 2.20.0 and 2.22.2
    \override BarLine.bar-extent = #'(-2 . 2) % LilyPond 2.18: please make barlines as high as the time signature even though we're on a RhythmicStaff (2.16 and 2.15 don't need this although its presence doesn't hurt; Issue 3685 seems to indicate they'll fix it post-2.18)
    $(add-grace-property 'Voice 'Stem 'direction DOWN)
    $(add-grace-property 'Voice 'Slur 'direction UP)
    $(add-grace-property 'Voice 'Stem 'length-fraction 0.5)
    $(add-grace-property 'Voice 'Beam 'beam-thickness 0.1)
    $(add-grace-property 'Voice 'Beam 'length-fraction 0.3)
    $(add-grace-property 'Voice 'Beam 'after-line-breaking flip-beams)
    $(add-grace-property 'Voice 'Beam 'Y-offset 2.5)
    $(add-grace-property 'Voice 'NoteHead 'Y-offset 2.5)
    }
    { \new Voice="W" {
    \override Beam.transparent = ##f
    \override Stem.direction = #DOWN
    \override Tie.staff-position = #2.5
    \tupletUp
    \tieUp
    \override Stem.length-fraction = #0
    \override Beam.beam-thickness = #0.1
    \override Beam.length-fraction = #0.5
    \override Beam.after-line-breaking = #flip-beams
    \override Voice.Rest.style = #'neomensural % this size tends to line up better (we'll override the appearance anyway)
    \override Accidental.font-size = #-4
    \override TupletBracket.bracket-visibility = ##t

    \override Staff.TimeSignature.style = #'numbered
    \override Staff.Stem.transparent = ##t
     \tempo 4=80 \mark \markup{1=A} \time 4/4  \note-mod "5" g4 \set stemLeftBeamCount = #0
\set stemRightBeamCount = #1
 \note-mod "3" e8[
\set stemLeftBeamCount = #1
\set stemRightBeamCount = #1
 \note-mod "5" g8]
\once \override Tie.transparent = ##t \once \override Tie.staff-position = #0  \note-mod "1" c4^.
 ~  \note-mod "–" c4 | %{ bar 2: %}
 \note-mod "6" a4
\set stemLeftBeamCount = #0
\set stemRightBeamCount = #1
 \note-mod "1" c8^.[
\set stemLeftBeamCount = #1
\set stemRightBeamCount = #1
 \note-mod "6" a8]
\once \override Tie.transparent = ##t \once \override Tie.staff-position = #0  \note-mod "5" g4
 ~  \note-mod "–" g4 | %{ bar 3: %}
 \note-mod "5" g4
\set stemLeftBeamCount = #0
\set stemRightBeamCount = #1
 \note-mod "1" c8[
\set stemLeftBeamCount = #1
\set stemRightBeamCount = #1
 \note-mod "2" d8]
 \note-mod "3" e4 \set stemLeftBeamCount = #0
\set stemRightBeamCount = #1
 \note-mod "2" d8[
\set stemLeftBeamCount = #1
\set stemRightBeamCount = #1
 \note-mod "1" c8]
\once \override Tie.transparent = ##t \once \override Tie.staff-position = #0 | %{ bar 4: %}
 \note-mod "2" d4
 ~ \once \override Tie.transparent = ##t \once \override Tie.staff-position = #0  \note-mod "–" d4
 ~  \note-mod "–" d4  \note-mod "0" r4 \break | %{ bar 5: %}
 \note-mod "5" g4
\set stemLeftBeamCount = #0
\set stemRightBeamCount = #1
 \note-mod "3" e8[
\set stemLeftBeamCount = #1
\set stemRightBeamCount = #1
 \note-mod "5" g8]
 \note-mod "1" c4.^. \set stemLeftBeamCount = #0
\set stemRightBeamCount = #1
 \note-mod "7" b8[]
| %{ bar 6: %}
 \note-mod "6" a4
 \note-mod "1" c4^. \once \override Tie.transparent = ##t \once \override Tie.staff-position = #0  \note-mod "5" g4
 ~  \note-mod "–" g4 | %{ bar 7: %}
 \note-mod "5" g4
\set stemLeftBeamCount = #0
\set stemRightBeamCount = #1
 \note-mod "2" d8[
\set stemLeftBeamCount = #1
\set stemRightBeamCount = #1
 \note-mod "3" e8]
 \note-mod "4" f4. \set stemLeftBeamCount = #0
\set stemRightBeamCount = #1
 \note-mod "7" b8-\tweak #'X-offset #0.6 _. []
\once \override Tie.transparent = ##t \once \override Tie.staff-position = #0 | %{ bar 8: %}
 \note-mod "1" c4
 ~ \once \override Tie.transparent = ##t \once \override Tie.staff-position = #0  \note-mod "–" c4
 ~  \note-mod "–" c4  \note-mod "0" r4 \break | %{ bar 9: %}
 \note-mod "6" a4
^"低八度"  \note-mod "1" c4^.  \note-mod "1" c4^.  \note-mod "0" r4 | %{ bar 10: %}
 \note-mod "7" b4
\set stemLeftBeamCount = #0
\set stemRightBeamCount = #1
 \note-mod "6" a8[
\set stemLeftBeamCount = #1
\set stemRightBeamCount = #1
 \note-mod "7" b8]
 \note-mod "1" c4^.  \note-mod "0" r4 | %{ bar 11: %} \set stemLeftBeamCount = #0
\set stemRightBeamCount = #1
 \note-mod "6" a8[
\set stemLeftBeamCount = #1
\set stemRightBeamCount = #1
 \note-mod "7" b8]
\set stemLeftBeamCount = #0
\set stemRightBeamCount = #1
 \note-mod "1" c8^.[
\set stemLeftBeamCount = #1
\set stemRightBeamCount = #1
 \note-mod "6" a8]
\set stemLeftBeamCount = #0
\set stemRightBeamCount = #1
 \note-mod "6" a8[
\set stemLeftBeamCount = #1
\set stemRightBeamCount = #1
 \note-mod "5" g8]
\set stemLeftBeamCount = #0
\set stemRightBeamCount = #1
 \note-mod "3" e8[
\set stemLeftBeamCount = #1
\set stemRightBeamCount = #1
 \note-mod "1" c8]
\once \override Tie.transparent = ##t \once \override Tie.staff-position = #0 | %{ bar 12: %}
 \note-mod "2" d4
 ~ \once \override Tie.transparent = ##t \once \override Tie.staff-position = #0  \note-mod "–" d4
 ~  \note-mod "–" d4  \note-mod "0" r4 \break | %{ bar 13: %}
 \note-mod "5" g4
\set stemLeftBeamCount = #0
\set stemRightBeamCount = #1
 \note-mod "3" e8[
\set stemLeftBeamCount = #1
\set stemRightBeamCount = #1
 \note-mod "5" g8]
 \note-mod "1" c4.^. \set stemLeftBeamCount = #0
\set stemRightBeamCount = #1
 \note-mod "7" b8[]
| %{ bar 14: %}
 \note-mod "6" a4
 \note-mod "1" c4^. \once \override Tie.transparent = ##t \once \override Tie.staff-position = #0  \note-mod "5" g4
 ~  \note-mod "–" g4 | %{ bar 15: %}
 \note-mod "5" g4
\set stemLeftBeamCount = #0
\set stemRightBeamCount = #1
 \note-mod "2" d8[
\set stemLeftBeamCount = #1
\set stemRightBeamCount = #1
 \note-mod "3" e8]
 \note-mod "4" f4. \set stemLeftBeamCount = #0
\set stemRightBeamCount = #1
 \note-mod "7" b8-\tweak #'X-offset #0.6 _. []
\once \override Tie.transparent = ##t \once \override Tie.staff-position = #0 | %{ bar 16: %}
 \note-mod "1" c4
 ~ \once \override Tie.transparent = ##t \once \override Tie.staff-position = #0  \note-mod "–" c4
 ~  \note-mod "–" c4  \note-mod "0" r4 \bar "|." } }
% === END JIANPU STAFF ===

>>
\header{
title="送别"
}
\layout{
  \context {
    \Global
    \grobdescriptions #all-grob-descriptions
  }
} }
\score {
\unfoldRepeats
<<
\new ChordNames { \set chordChanges = ##t \chordmode { a1 d2 a2 a1 e:7 a1 d2 a2 a1 e:7 d1 e:7 a2 d2 a2 e:7 a1 d2 a2 e:7 a1 } }

% === BEGIN MIDI STAFF ===
    \new Staff { \new Voice="X" { \tempo 4=80 \transpose c a, { \key c \major  \time 4/4 g'4 e'8 g'8 c''2 | %{ bar 2: %} a'4 c''8 a'8 g'2 | %{ bar 3: %} g'4 c'8 d'8 e'4 d'8 c'8 | %{ bar 4: %} d'2. r4 \break | %{ bar 5: %} g'4 e'8 g'8 c''4. b'8 | %{ bar 6: %} a'4 c''4 g'2 | %{ bar 7: %} g'4 d'8 e'8 f'4. b8 | %{ bar 8: %} c'2. r4 \break | %{ bar 9: %} a'4 ^"低八度" c''4 c''4 r4 | %{ bar 10: %} b'4 a'8 b'8 c''4 r4 | %{ bar 11: %} a'8 b'8 c''8 a'8 a'8 g'8 e'8 c'8 | %{ bar 12: %} d'2. r4 \break | %{ bar 13: %} g'4 e'8 g'8 c''4. b'8 | %{ bar 14: %} a'4 c''4 g'2 | %{ bar 15: %} g'4 d'8 e'8 f'4. b8 | %{ bar 16: %} c'2. r4 } } }
% === END MIDI STAFF ===

>>
\header{
title="送别"
}
\midi { \context { \Score tempoWholesPerMinute = #(ly:make-moment 84 4)}} }

.. jianpuinclude:: /_scores/songbie.jp

See also

You and download the example LilyPond documentation from here: /_scores/songbie.jp.

Options of the directive are same to The lily directive.
